Fully Automatic Hybrid - Carbon and Sand Filter With Water Softener [Hybrid I-100] 4000 LPH

(0) Reviews

163500.00 270000.00

Purity Hub's Fully Automatic Hybrid Filtration System [Hybrid I-100] combines the power of carbon and sand filter along with water softener. This dual tank unit completely eliminates mud, dust & chemical impurities along with water hardness. The specially designed multiport valves regenerates the water softener and backwashes carbon & sand filter independently designed for high turbidity water. High quality sand and carbon media with 15% cross-linked resin makes the whole unit ultra performer. Hybrid I-100 comes equipped with Purity Hub's Patented Low Salt Alarm, Smart Info Panel, Proper Brine Tank, LP BFT & dual functional regeneration cum pressure pump.

Category: Hybrid Filtration

Brand: Purity Hub

Request Callback

Add to Cart

Download Brochure

Free Shipping | Expert Installation Service | 3 Years Warranty

Product : Fully Automatic Hybrid - Carbon and Sand Filter With Water Softener [Hybrid I-100] 4000 LPH

Attribute	Value
Vessel	Epoxy Coated Twin 14" X 65" FRP Vessels
Water Treatment Media (T1)	100 Kg - Coarse Sand + 1300 IV Carbon Mix Bed Media
Water Treatment Media (T2)	100 Litres Purity Hub High Cross-Linked Food Grade Resin

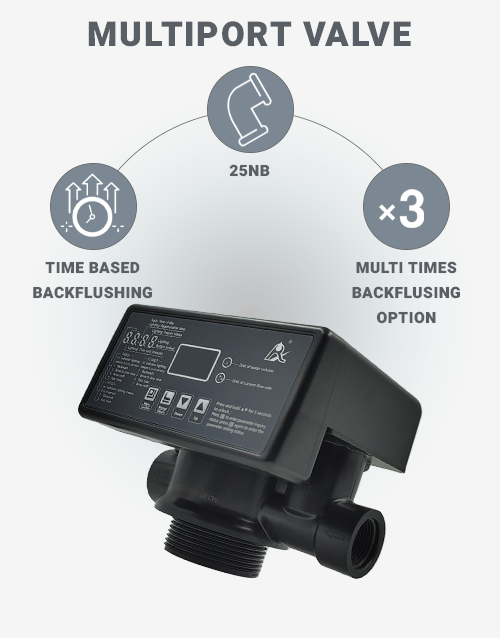

Multiport Valve (MPV)	Fully Programmable & Automatic Twin Multiport Valves with 4000 LPH Max. (25NB) Water Flow Rate (1 Inch)

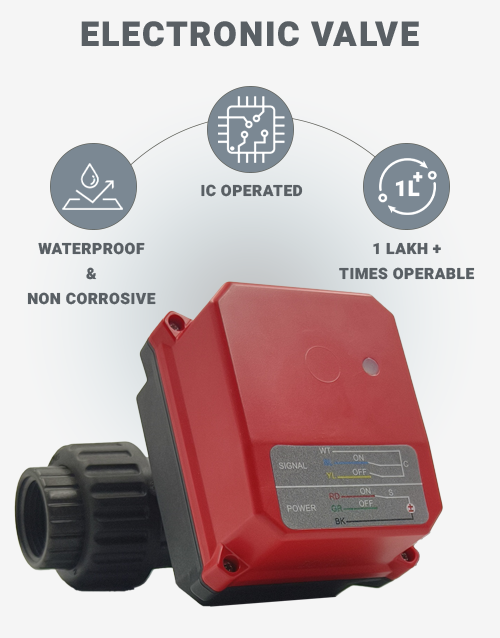

Regeneration / Backwashing Motor	0.5 HP Regeneration & Backwashing Motor / Smart Ball-Valve Regeneration & Backwashing
Smart Info Panel	Yes (Refer to Product Images)
6 Way Bypass Valve	Yes (Refer to Product Images)
Brine Tank	200 Litres Brine Tank with Brine Assembly & Brine Level Controller [Round / Square]
Industrial Tablet Salt (NaCl) 99.5% Pure	50 Kg
Top & Bottom Strainer Set	Yes (20 MM)
Purity Hub's Patented Low Salt Indication Alarm	Yes
Smart Regeneration IC	Yes
System Safety Equipment 1	Vacuum Breaker for Vessels Safety
System Safety Equipment 2	MPV, Adopter & Motor Covers
System Safety Equipment 3	LP Switch for Multiport Valve & Regeneration Safety
System Safety Equipment 4	Brine Tank Overflow Protection
OBR (Output Between Regeneration) at 250 PPM	20,000 Litres
OBSA (Output Between Salt Addition)	1,87,500 Litres
SCR (Salt Consumption Per Regeneration)	16 Kg
Maximum Operating Inlet Pressure	Not more than 1.5 Kg/Cm2
Plumbing Material, Electric Board & CAT6 Cable	Client Provided On Site
Product & Service Availability	Across India
Warranty	3 Years End to End On-Site Warranty
