Fully Automatic Hybrid - Glass Filtration Cum Water Softener [Auto Z-75] 4000 LPH

(6) Reviews
165500.00 270000.00

The Purity Hub Auto Z-75 is a fully automatic, intelligently engineered hybrid water softener that combines advanced softening technology with 5-micron precision filtration using special glass media—offering superior clarity and protection from fine particles. Unlike conventional setups that require two separate multiport valves, the Auto Z-75 uses a single, specially designed multiport valve to manage both filtration and softening functions, significantly reducing plumbing complexity, cost, and water wastage during regeneration. The valve is built with high-strength ceramic discs, fired at extreme temperatures (1680°C to 2200°C), ensuring long-term durability and corrosion resistance. The system comes preloaded with 15% cross-linked ion exchange resin for enhanced hardness removal and is equipped with weatherproof wiring, push-fit brine connectors for tool-free installation, and smart automation features. These include Purity Hub’s patented Low Salt Alarm, a real-time Smart Info Panel, the LP-BFT safety system to prevent dry regeneration, and a dual-function pump interface that allows the regeneration motor to double as a pressure pump. Compact, eco-efficient, and reliable, the Auto Z-75 is a next-generation solution for homes and communities seeking high-performance water purification in a single intelligent unit.

Free Shipping | Expert Installation Service | 5 Years Warranty

Purity Hub Auto Z-75 – Hybrid Glass Filtration Cum Water Softener System
Product Features | उत्पाद विशेषताएं
1. Single Valve Control for Filtration & Softening

The Auto Z-75 operates both glass media filtration and water softening through a single, fully automatic multiport valve, eliminating the need for dual valves and reducing plumbing and maintenance costs.

Auto Z-75 पूरी तरह से स्वचालित मल्टीपोर्ट वाल्व से गिलास फिल्ट्रेशन और वॉटर सॉफ्टनिंग को एक साथ नियंत्रित करता है, जिससे अलग-अलग वाल्व की आवश्यकता समाप्त हो जाती है। यह प्लंबिंग और मेंटेनेंस दोनों को आसान बनाता है।
2. 5-Micron Precision Glass Media Filtration

Equipped with specialized glass media, this system filters down to 5 microns, effectively removing turbidity, sediments, and fine impurities.

5 माइक्रॉन तक की सफाई करने वाली विशेष ग्लास मीडिया से बना यह सिस्टम, गंदगी, मैल और छोटे कणों को प्रभावी रूप से हटाता है।
3. Time & Volume-Based Regeneration

Dual regeneration logic based on time or water usage ensures optimal cleaning based on consumption needs.

यह सिस्टम समय या पानी की खपत के अनुसार अपने आप रिजनरेशन करता है, जिससे सफाई प्रक्रिया हर बार सटीक और प्रभावी होती है।
4. High Flow Rate – 4000 Litres Per Hour

Delivers 4000 LPH softened and filtered water, perfect for homes, duplexes, and small commercial units.

यह मशीन प्रति घंटे 4000 लीटर सॉफ्ट और फिल्टर्ड पानी देती है, जो मीडियम हाउसहोल्ड्स और लाइट कमर्शियल यूज़ के लिए आदर्श है।
5. Built-In Low Salt Alarm System

Purity Hub’s patented alarm system notifies you when salt in the brine tank is low—preventing saltless regeneration.

जब ब्राइन टैंक में नमक कम हो जाता है, तो पेटेंटेड अलार्म आपको सूचना देता है, ताकि आप समय पर नमक भर सकें।
6. Weather-Protected Design with Plastic & Metal Covers

The system’s motor, valve, and adapter come protected with UV-resistant plastic and metal covers, making it suitable for Indian outdoor conditions.

मल्टीपोर्ट वाल्व, मोटर और एडॉप्टर जैसे सभी आवश्यक हिस्सों पर मौसम रेसिस्टेंट कवर दिए गए हैं, जो गर्मी, बारिश और धूल से सुरक्षा देते हैं।
7. LP-BFT Safety System for Salt Protection

Low Pressure – Before Tank (LP-BFT) prevents regeneration when water is insufficient, ensuring safe operation and no dry cycling.

अगर पानी की सप्लाई कम है तो LP-BFT तकनीक रिजनरेशन को रोक देती है, और पानी आने पर प्रक्रिया वहीं से चालू होती है।
8. 100-Litre Brine Tank for Bulk Salt Storage

The system includes a 100-litre brine tank, allowing ample salt storage for uninterrupted use.

100 लीटर की ब्राइन टंकी ज़्यादा नमक स्टोर करने की सुविधा देती है, जिससे बार-बार रिफिल करने की आवश्यकता नहीं होती।
9. Built-In Regeneration Motor (MPV Controlled)

Eliminates the need for manual motor operation. Regeneration is triggered automatically via the multiport valve.

रिजनरेशन मोटर मल्टीपोर्ट वाल्व से संचालित होती है — मैन्युअल मोटर ऑन/ऑफ करने की आवश्यकता नहीं होती।
10. Smart Regeneration Circuit with Auto Water Detection

If water is not available during regeneration, the circuit starts the borewell/sump motor automatically to ensure proper cleaning.

अगर रिजनरेशन के समय पानी उपलब्ध नहीं है, तो स्मार्ट सर्किट बोर या संप मोटर को अपने आप चालू कर देता है।
11. Smart Ball-Valve Integration – Dual Motor Capability

Allows one motor to function both as a regeneration motor and a pressure pump, or vice versa, even with high-pressure systems.

स्मार्ट बॉल वाल्व तकनीक से एक ही मोटर रिजनरेशन और प्रेशर पंप दोनों कार्य कर सकती है — चाहे प्रेशर हाई हो या लो।
12. Advanced Water Softener Info Panel

The digital info panel displays:

Power/adapter status
Regeneration and cleaning alerts
Water availability signals
Low salt warnings
Contact number to reorder salt instantly

डिजिटल पैनल आपको देता है पावर, सफाई प्रक्रिया, पानी की उपलब्धता और लो सॉल्ट की पूरी जानकारी — साथ ही नमक दोबारा मंगवाने के लिए सीधा कॉल नंबर भी।

Product : Fully Automatic Hybrid - Glass Filtration Cum Water Softener [Auto Z-75] 4000 LPH

Attribute Value
Vessel Epoxy Coated Dual 13" X 54" Fiber-Glass Vessels
Water Treatment Media (T1) 75 Kg - Activated Glass Media + 1300 IV Carbon Mix Bed Media
Water Treatment Media (T2) 75 Litres Purity Hub High Cross-Linked Food Grade Resin
Multiport Valve (MPV) Fully Programmable & Automatic Dual Functional Multiport Valve with 4000 LPH Max. (25NB) Water Flow Rate (1 Inch)
Regeneration / Backwashing Motor 0.5 HP Stainless Steel Regeneration & Backwashing Motor With Smart Ball-Valve Integration
Smart Info Panel Yes With On-Panel Regeneration Push (Refer to Product Images)

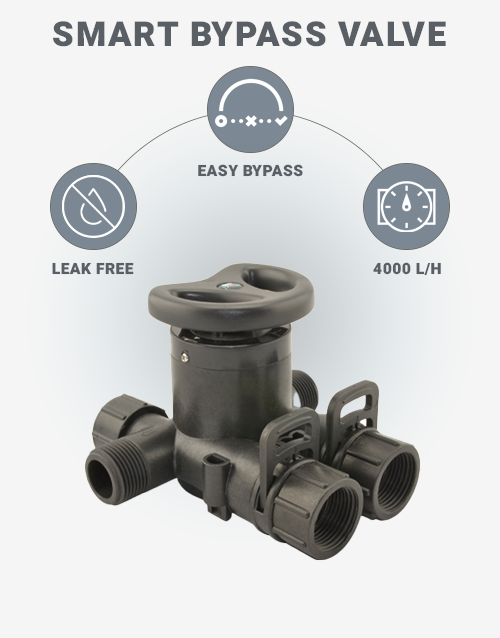

6 Way Bypass Valve Yes (Refer to Product Images)
Brine Tank 100 Litres Brine Tank with Brine Assembly & Brine Level Controller [Round / Square]
Industrial Tablet Salt (NaCl) 99.5% Pure 50 Kg
Top & Bottom Strainer Set Yes (25 MM)
Purity Hub's Patented Low Salt Indication Alarm Yes
Smart Regeneration IC Yes
System Safety Equipment 1 Vacuum Breaker for Vessels Safety
System Safety Equipment 2 MPV, Adopter & Motor Covers
System Safety Equipment 3 LP Switch for Multiport Valve & Regeneration Safety
System Safety Equipment 4 MPV Vacation Mode With In-Tank Recirculation Option
OBR (Output Between Regeneration) at 250 PPM 15,000 Litres
OBSA (Output Between Salt Addition) 62,500 Litres
SCR (Salt Consumption Per Regeneration) 12 Kg
Maximum Operating Inlet Pressure Not more than 1.5 Kg/Cm2
Plumbing Material, Electric Board & CAT6 Cable Client Provided On Site
Product & Service Availability Across India
Warranty 5 Years End to End On-Site Warranty
