Fully Automatic Hybrid - Glass Filtration Cum Water Softener [Auto Z-100] 4000 LPH

(4) Reviews
185500.00 310000.00

The Purity Hub Auto Z-100 is a fully automatic, intelligently engineered hybrid water softener that combines advanced softening technology with 5-micron precision filtration using special glass media—offering superior clarity and protection from fine particles. Unlike conventional setups that require two separate multiport valves, the Auto Z-100 uses a single, specially designed multiport valve to manage both filtration and softening functions, significantly reducing plumbing complexity, cost, and water wastage during regeneration. The valve is built with high-strength ceramic discs, fired at extreme temperatures (1680°C to 2200°C), ensuring long-term durability and corrosion resistance. The system comes preloaded with 15% cross-linked ion exchange resin for enhanced hardness removal and is equipped with weatherproof wiring, push-fit brine connectors for tool-free installation, and smart automation features. These include Purity Hub’s patented Low Salt Alarm, a real-time Smart Info Panel, the LP-BFT safety system to prevent dry regeneration, and a dual-function pump interface that allows the regeneration motor to double as a pressure pump. Compact, eco-efficient, and reliable, the Auto Z-100 is a next-generation solution for homes and communities seeking high-performance water purification in a single intelligent unit.

Free Shipping | Expert Installation Service | 5 Years Warranty

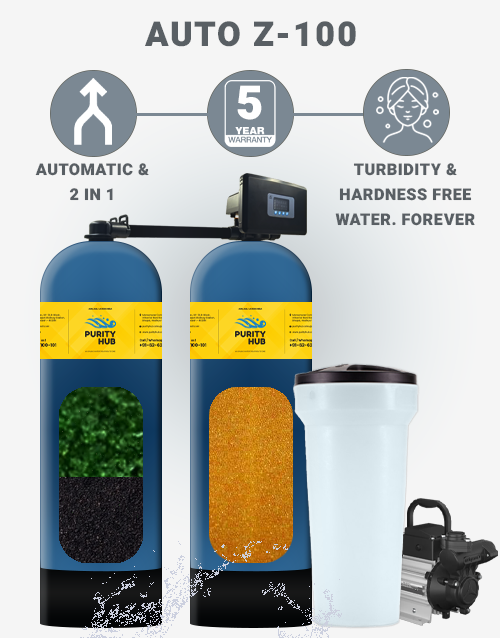

Purity Hub Auto Z-100 – Hybrid Glass Filtration Cum Water Softener System
Product Features | उत्पाद विशेषताएं
1. Single Valve Control for Filtration & Softening

The Auto Z-100 manages both 5-micron glass media filtration and water softening using a single, fully automatic multiport valve, removing the need for separate controls and minimizing plumbing and maintenance effort.

Auto Z-100 पूरी तरह से स्वचालित मल्टीपोर्ट वाल्व के माध्यम से गिलास फ़िल्ट्रेशन और वॉटर सॉफ्टनिंग को एक साथ नियंत्रित करता है, जिससे दो अलग-अलग वाल्व की आवश्यकता समाप्त होती है और प्लंबिंग सरल हो जाती है।
2. 5-Micron Precision Glass Media Filtration

Powered by special glass filtration media, the system filters suspended particles as fine as 5 microns, ensuring crystal-clear water by removing fine sediments, turbidity, and impurities.

यह सिस्टम विशेष ग्लास मीडिया से बना है जो 5 माइक्रॉन तक की गंदगी को हटाकर बेहद साफ पानी प्रदान करता है।
3. Time & Volume-Based Regeneration

Dual-mode regeneration works on preset time or water usage, making it ideal for varying consumption patterns.

Auto Z-100 समय और पानी की खपत दोनों के आधार पर रिजनरेशन करता है, जिससे सफाई हमेशा सटीक और समय पर होती है।
4. High Flow Rate – 4000 Litres Per Hour

Delivers 4000 LPH of softened, filtered water—ideal for villas, duplexes, large households, and small commercial spaces.

Auto Z-100 प्रति घंटे 4000 लीटर सॉफ्ट और फिल्टर्ड पानी देता है, जो बड़े घरों और हल्के कमर्शियल उपयोग के लिए उपयुक्त है।
5. Built-In Low Salt Alarm System

Our patented low salt indication alarm notifies you in advance when salt levels in the brine tank are low, avoiding saltless regeneration and system damage.

पेटेंटेड लो-सॉल्ट अलार्म ब्राइन टैंक में नमक कम होने पर तुरंत अलर्ट देता है, ताकि आप समय पर नमक भर सकें।
6. Weather-Resistant Protection with Covers

The system is built for Indian conditions with UV-resistant plastic and metal covers for the valve, adapter, and motor—ensuring durability in outdoor settings.

इस मशीन के वाल्व, मोटर और एडॉप्टर पर मौसम प्रतिरोधी कवर दिए गए हैं, जिससे यह धूप, बारिश और धूल में भी सुरक्षित बनी रहती है।
7. LP-BFT Salt Protection System

The Low Pressure – Before Tank (LP-BFT) safety system halts regeneration when water isn’t available, and resumes automatically when the supply returns—preventing dry runs.

LP-BFT तकनीक यह सुनिश्चित करती है कि जब तक पर्याप्त पानी उपलब्ध न हो, तब तक रिजनरेशन नहीं हो। इससे सिस्टम की कार्यक्षमता बनी रहती है।
8. Extra-Large 200-Litre Brine Tank

The Auto Z-100 comes equipped with a 200-litre brine tank, allowing extended use without frequent salt refilling—ideal for higher capacity needs.

200 लीटर की बड़ी ब्राइन टंकी अधिक मात्रा में नमक संग्रह करने की सुविधा देती है, जिससे रिफिल बार-बार करने की आवश्यकता नहीं होती।
9. Built-In MPV-Controlled Regeneration Motor

No manual borewell or sump pump activation is needed. The regeneration motor runs automatically as part of the system’s smart design.

रिजनरेशन मोटर मल्टीपोर्ट वाल्व द्वारा पूरी तरह से स्वचालित रूप से नियंत्रित होती है — कोई मैन्युअल हस्तक्षेप नहीं।
10. Smart Cleaning Circuit with Auto Motor Start

The intelligent circuit detects water availability during regeneration. If insufficient, it automatically starts the borewell/sump motor to ensure proper cleaning.

अगर सफाई के दौरान पानी उपलब्ध नहीं है, तो स्मार्ट सर्किट अपने आप मोटर चालू कर देता है — जिससे रिजनरेशन कभी सूखा नहीं होता।
11. Smart Ball-Valve Integration for Dual Motor Roles

This feature allows one motor to act as both a regeneration motor and a pressure pump, or enables the client’s high-pressure pump to manage regeneration—based on system configuration.

स्मार्ट बॉल-वाल्व तकनीक से एक ही मोटर रिजनरेशन और प्रेशर पंप दोनों की तरह काम कर सकती है, चाहे वह हाई-प्रेशर मोटर ही क्यों न हो।
12. Advanced Digital Softener Info Panel

A state-of-the-art info panel shows:

MPV adapter power status
Regeneration & cleaning cycle notifications
Low salt and no-water alerts
direct phone number to reorder salt instantly

डिजिटल पैनल आपको देता है—पावर स्थिति, सफाई प्रक्रिया का अलर्ट, पानी की उपलब्धता, लो-सॉल्ट चेतावनी और नमक ऑर्डर करने का सीधा नंबर।

Product : Fully Automatic Hybrid - Glass Filtration Cum Water Softener [Auto Z-100] 4000 LPH

Attribute Value
Vessel Epoxy Coated Dual 14" X 65" Fiber-Glass Vessels
Water Treatment Media (T1) 100 Kg - Activated Glass Media + 1300 IV Carbon Mix Bed Media
Water Treatment Media (T2) 100 Litres Purity Hub High Cross-Linked Food Grade Resin
Multiport Valve (MPV) Fully Programmable & Automatic Dual Functional Multiport Valve with 4000 LPH Max. (25NB) Water Flow Rate (1 Inch)

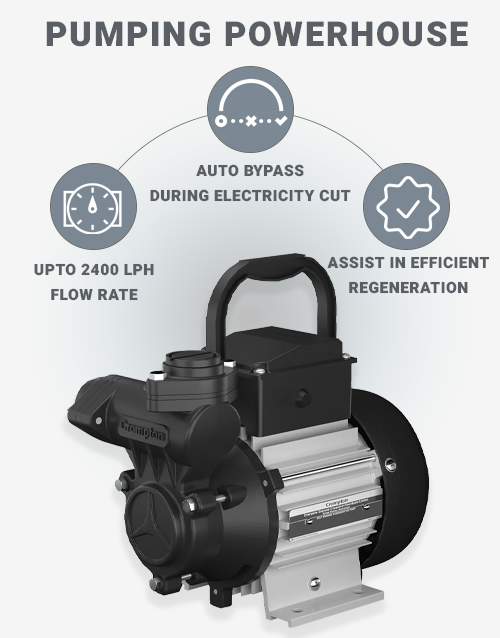

Regeneration / Backwashing Motor 0.5 HP Stainless Steel Regeneration & Backwashing Motor With Smart Ball-Valve Integration
Smart Info Panel Yes With On-Panel Regeneration Push (Refer to Product Images)
6 Way Bypass Valve Yes (Refer to Product Images)
Brine Tank 200 Litres Brine Tank with Brine Assembly & Brine Level Controller [Round / Square]
Industrial Tablet Salt (NaCl) 99.5% Pure 75 Kg
Top & Bottom Strainer Set Yes (25 MM)
Purity Hub's Patented Low Salt Indication Alarm Yes
Smart Regeneration IC Yes
System Safety Equipment 1 Vacuum Breaker for Vessels Safety
System Safety Equipment 2 MPV, Adopter & Motor Covers
System Safety Equipment 3 LP Switch for Multiport Valve & Regeneration Safety
System Safety Equipment 4 MPV Vacation Mode With In-Tank Recirculation Option
OBR (Output Between Regeneration) at 250 PPM 20,000 Litres
OBSA (Output Between Salt Addition) 1,87,500 Litres
SCR (Salt Consumption Per Regeneration) 16 Kg
Maximum Operating Inlet Pressure Not more than 1.5 Kg/Cm2
Plumbing Material, Electric Board & CAT6 Cable Client Provided On Site
Product & Service Availability Across India
Warranty 5 Years End to End On-Site Warranty
